Explore Artificial Intelligence and Robotics in Depth
UGOT is a versatile and innovative educational robotic kit that offers a wide range of capabilities and modes of operation. With its powerful AI features, high computing power, and modular design, UGOT provides users with a simple and engaging way to experience advanced artificial intelligence and robotics technology.
Versatile Builds
High-performance Computing
Rich Algorithms
Open Source System
Multi-scenario Curriculum
Comprehensive Services

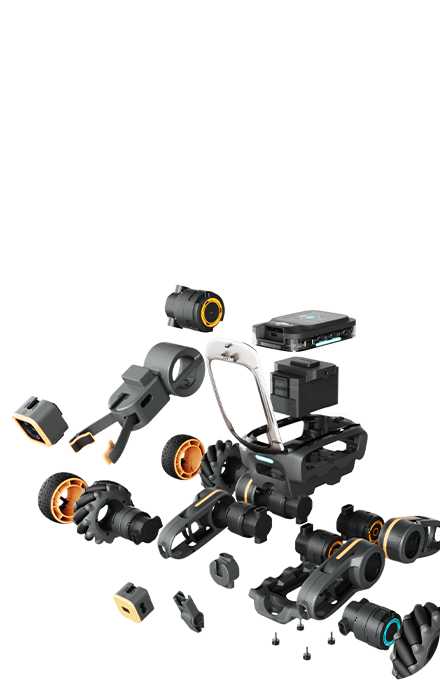

Fast Assembly for 7 Unique Robots
Featuring a modular design and innovative knob lock, UGOT ensures fast assembly and transformation which increases user efficiency. You can build versatile robotic models with only one kit.
High-performance Computing
Pushes the Boundaries of AI Education
The main control integrates CPU, GPU, and NPU chips and provides 1TOPS of computing power, enabling multi-algorithm processing, advanced algorithm models processing, offline model training, etc. UGOT fits more learning scenarios with endless possibilities.
Explore AI Technology with Diverse Algorithms
High computing power integrated with built-in algorithms enables UGOT to recognize gestures, human postures, faces, texts, objects, etc. You can experience a full range of AI capabilities while playing with UGOT.

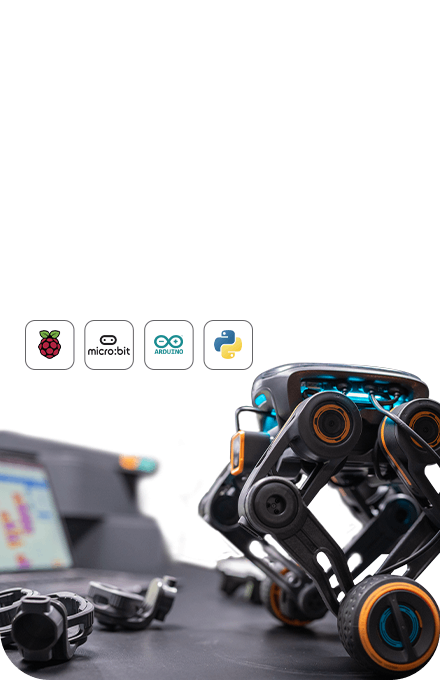

Open Source Ecosystem Creating Infinite Possibilities
UGOT supports third-party open-source hardware such as Micro Bit, Arduino, Raspberry Pi. You can also build your own robots with DIY components. An open Python SDK is provided for futher development.
Long Battery Life AI Teaching in no Hurry
Equipped with a 2600mAh battery, UGOT supports up to 2 hours of continuous use.
Curriculum System
The Curriculum is designed to focus on international guideline standards such as CSTA, AI4K12 and also the UBTECH Artificial Intelligence Knowledge Mapping.
Product Parameters
CPU
Quad-core Cortex - A55, yp to 1.8GHz, NPU 1TOPS
WiFi
2.4G/5.8G dual-band, 802.11 a/b/g/n/ac
BLE
Bluetooth 5.0
Memories
LPDDR4 2GB (RAM); eMMC 32GB (ROM)
Interface
USB 2.0*1, USB 3.0*1, UGOT Connector*6, USB-C*1, 9PIN*1, GPIO*1
Charging
P3.5*10 mm; 19V-1A
Operating Time
2.5 Hours
Camera
RGB Camera 720p
Sensors
3-axis accelerometer; 3-axis gyroscope; 3-axis geomagnetic sensor; ToF Sensor
Actuators
High-speed brushed DC servomotor x 4 (wheels), Brushed DC servomotors x 8 (joints)
Microphone
3-Microphone Array
Battery
2600mAh 11.1V lithium-ion rechargeable Battery
Speaker
1W
Max Speed
160 cm/s
